Exterior
POWERFUL – IMPRESSIVE

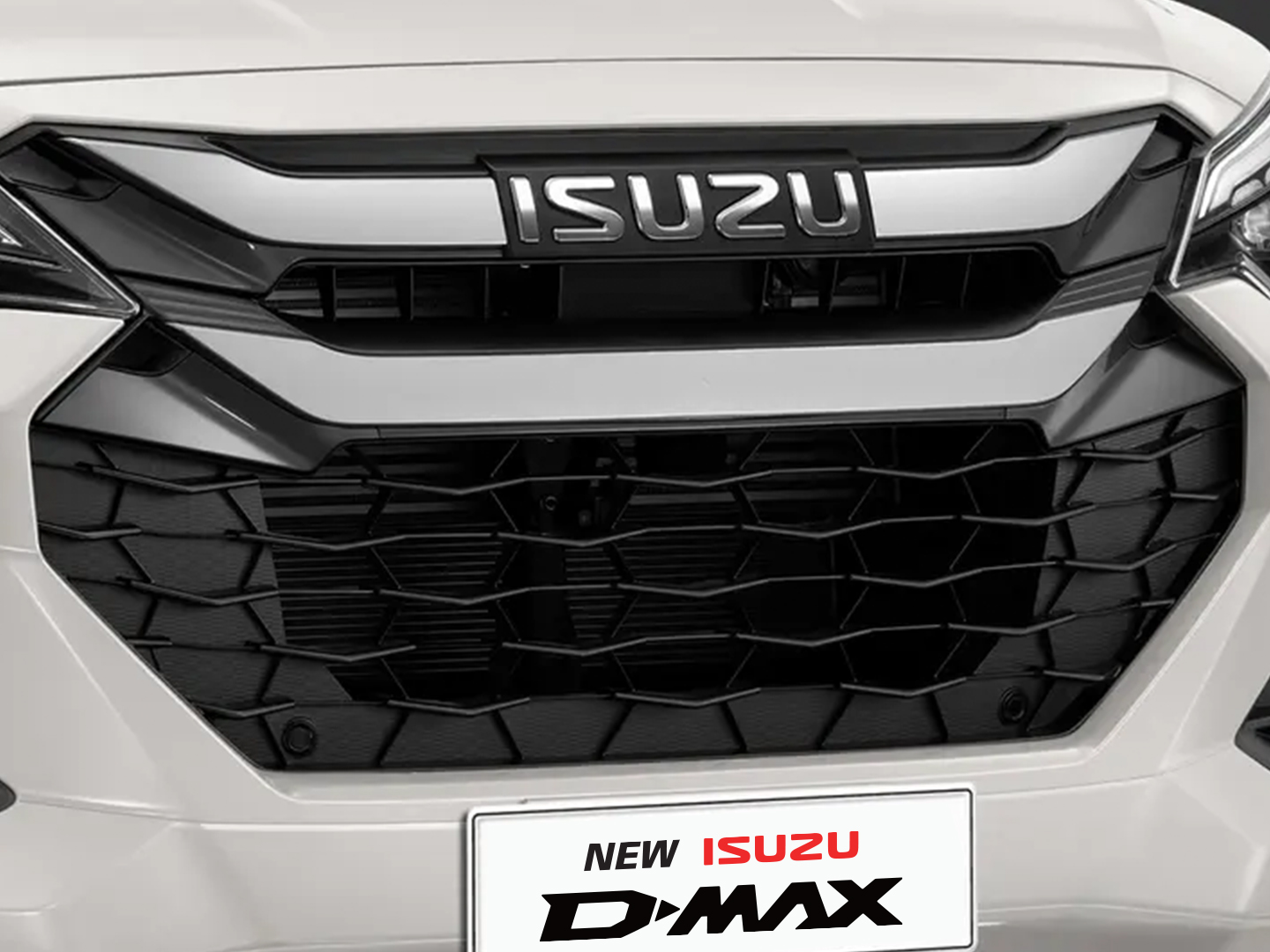

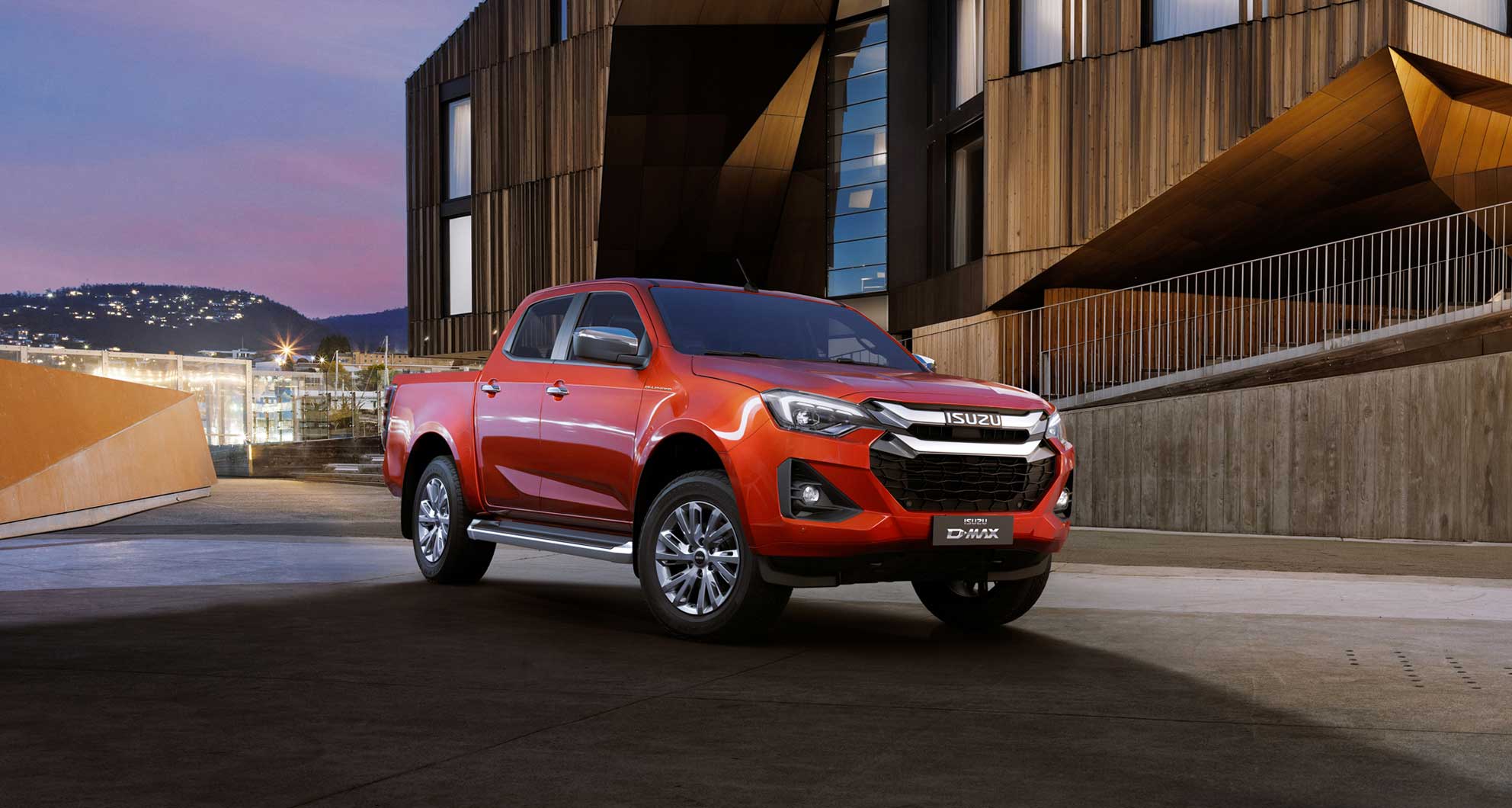

ISUZU D-MAX represents outstanding power and reliability with a strong & sport design. The exterior design of ISUZU D-MAX also stands out with the front radiator grill, along with a larger spoiler. These are not just stylistic additions; they also represent aerodynamic optimization.
Interior
ADVENTURE IN COMFORT

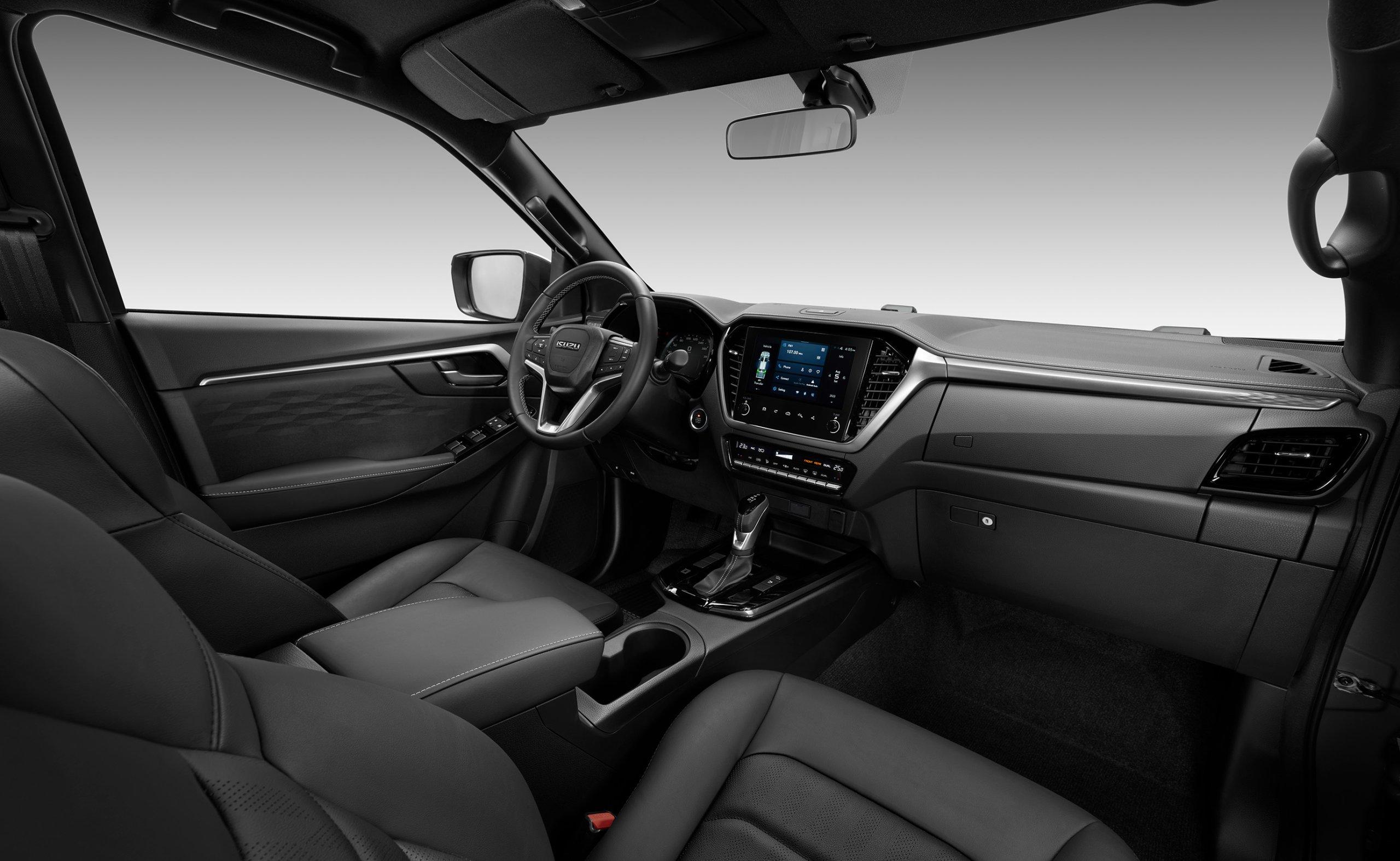

Comfortable, easy and versatile, ISUZU D-MAX is more than just a pickup truck. It is a mobile space, a place to relax, and a place where you can start your adventure. Whether you are traveling with your family or using it for work, SUZU D-MAX always leads the way with optimal comfort on every journey.
Safety
SAFETY UNCOMPROMISED

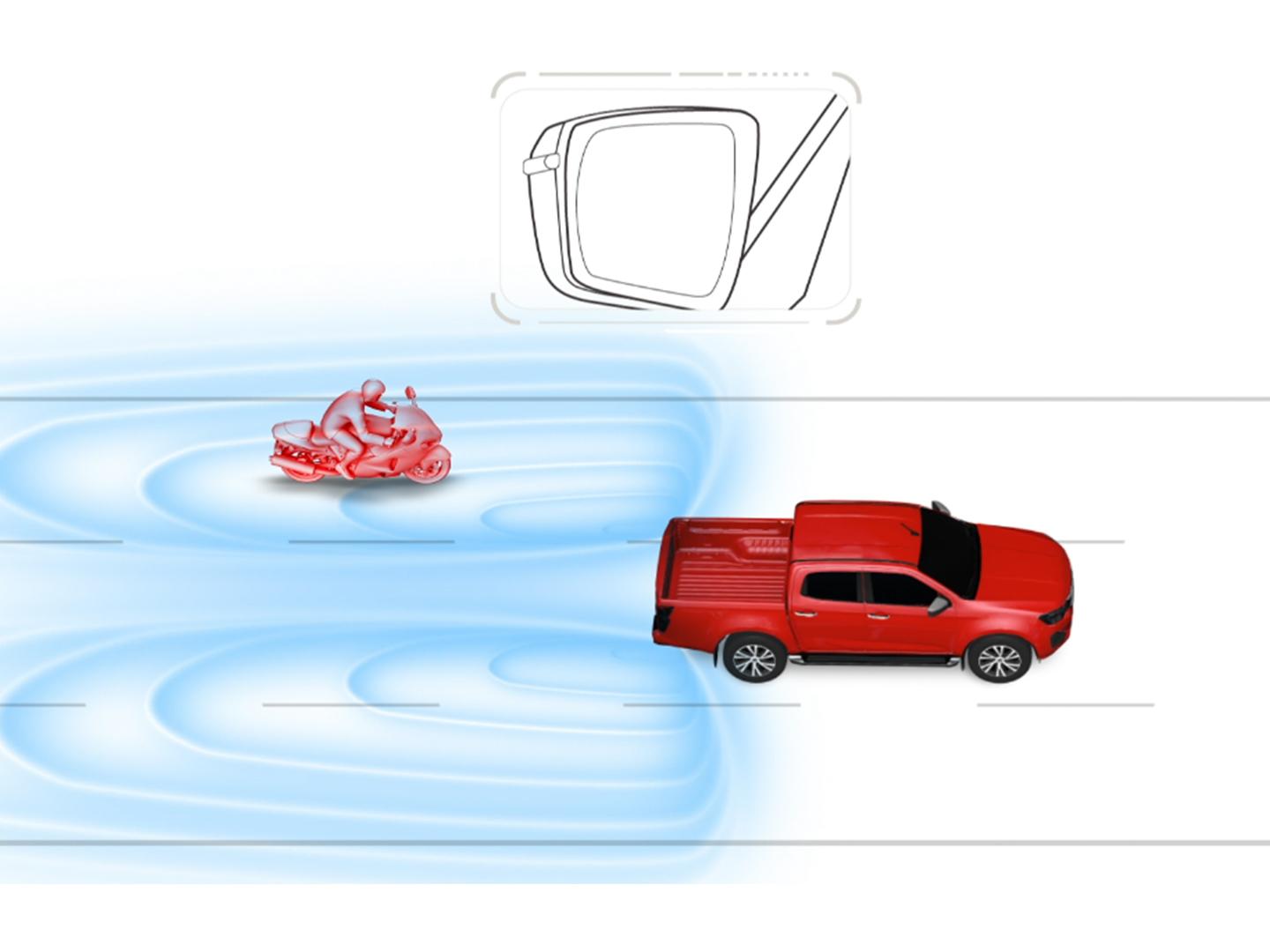

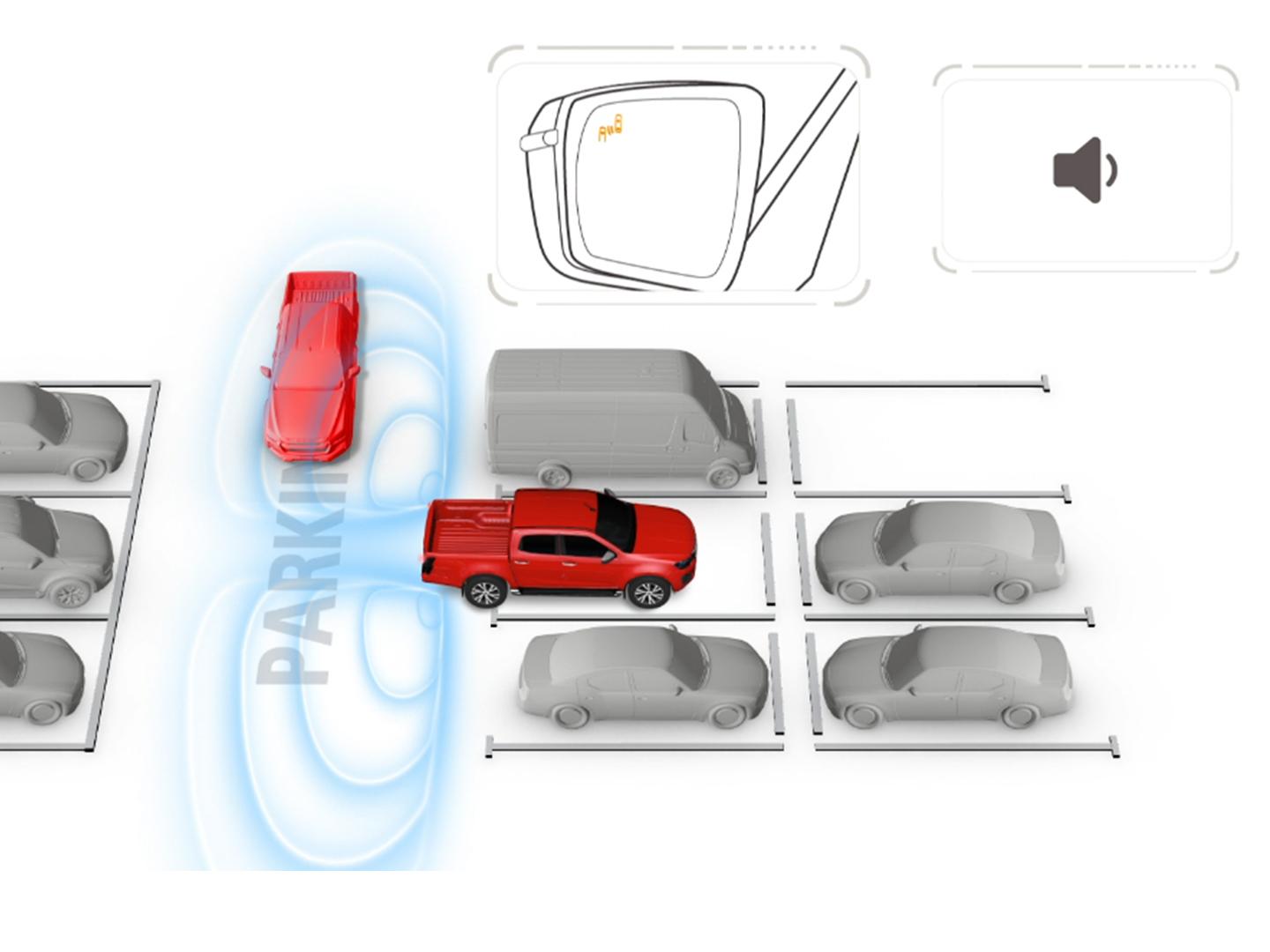

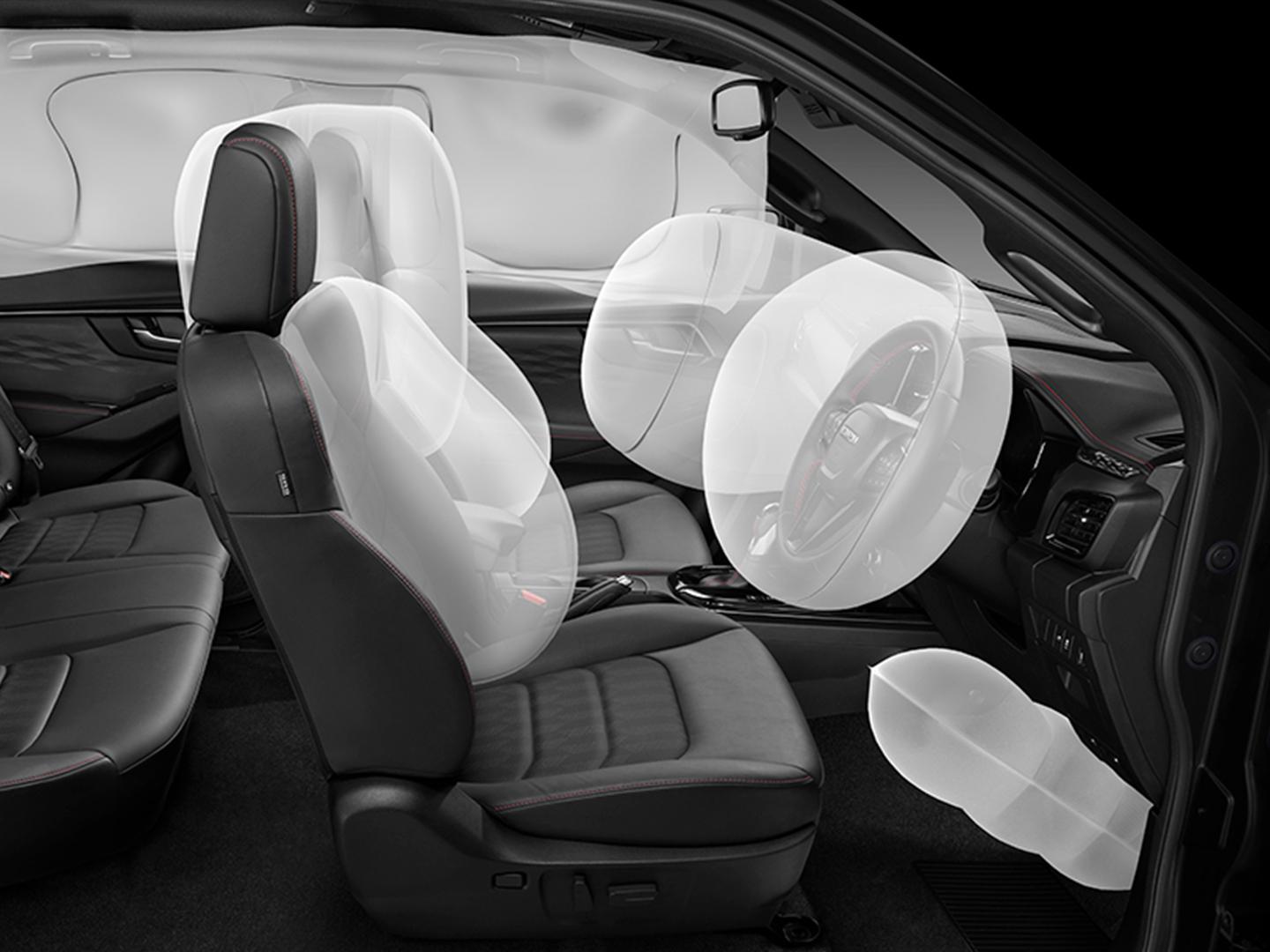

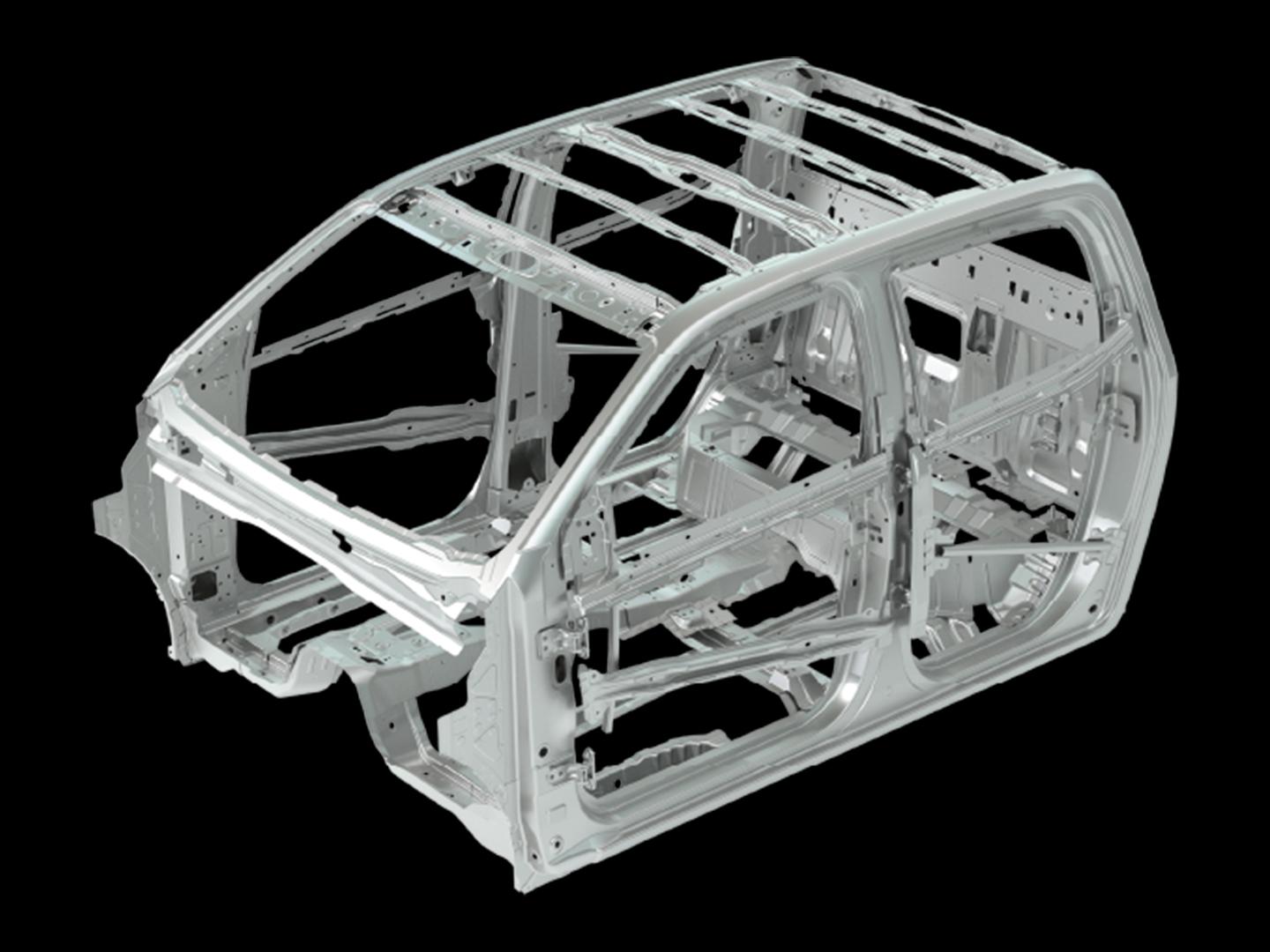

Aiming for maximum safety for you and your family, ISUZU D-MAX is equipped with a series of advanced safety features - supporting the resolution of dangerous situations. Because confidence is not only conquering the most difficult terrain; but also ensuring maximum safety - on every journey.
Performance
DURABILITY AND STABILITY
ISUZU D-MAX engine is not only durable, but also meets the emission standards and enrues economical during operation.
explore Specification
OVERVIEW
DIMENSION & WEIGHT
ENGINE
TRANSMISSION

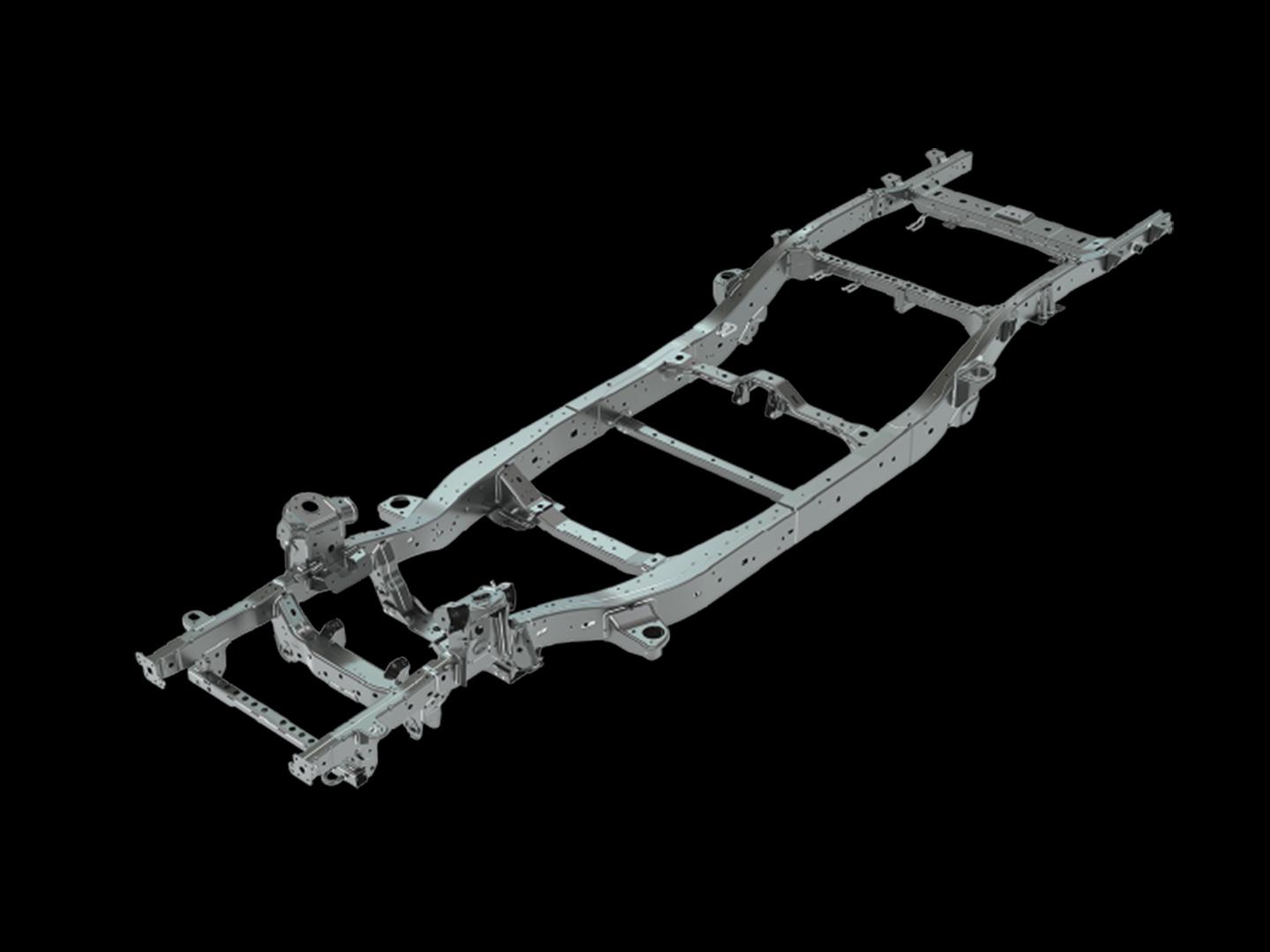

CHASSIS
EXTERIOR
ACCESSORY
INTERIOR
CONVENIENCE
| Manufacturers Name | Isuzu Motors Co., (Thailand) LTD | |
| Manufacturers Address | 38 Kor. Moo 9, Poochaosamingprai rd., Samrong Tai, Phrapradaeng, Samutprakarn 10130, Thailand | |
| Origin | Thailand | |
| Emission | Euro 5 | |
| Overall dimension (L x W x H) | mm | 5,280 x 1,870 x 1,790 |
| Inside cargo dimension (L x W x H) | mm | 1,495 x 1,530 x 490 |
| Wheelbase | mm | 3,125 |
| Front / Rear tread | mm | 1,570/1,570 |
| Ground clearance | mm | 240 |
| Min. turning radius | m | 6.1 |
| Kerbs weight | kg | 1,875 |
| Gross vehicle weight | kg | 2,650 |
| Payload | kg | 450 |
| Fuel tank capacity | liter | 76 |
| Seating capacity | persons | 05 |

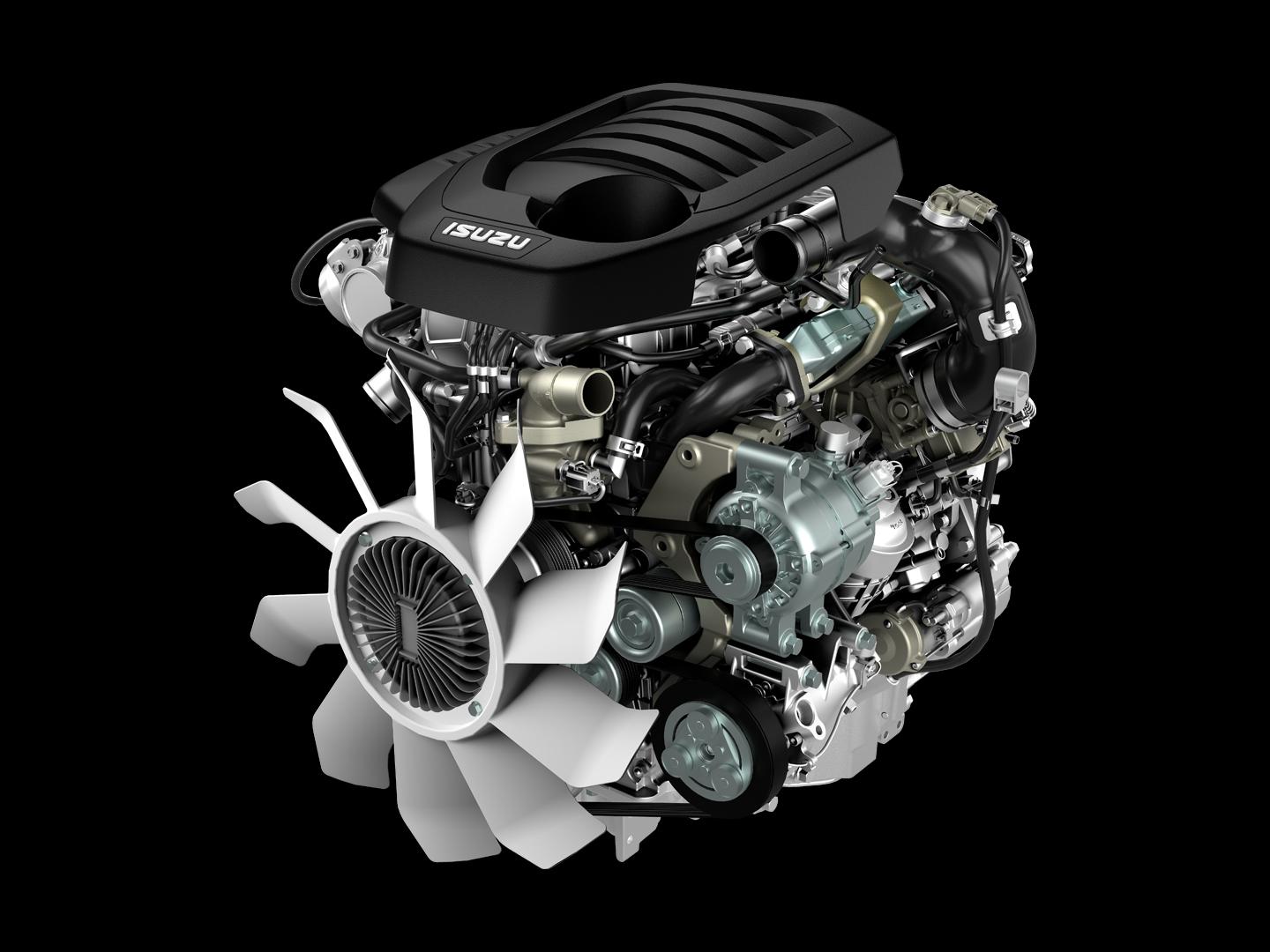

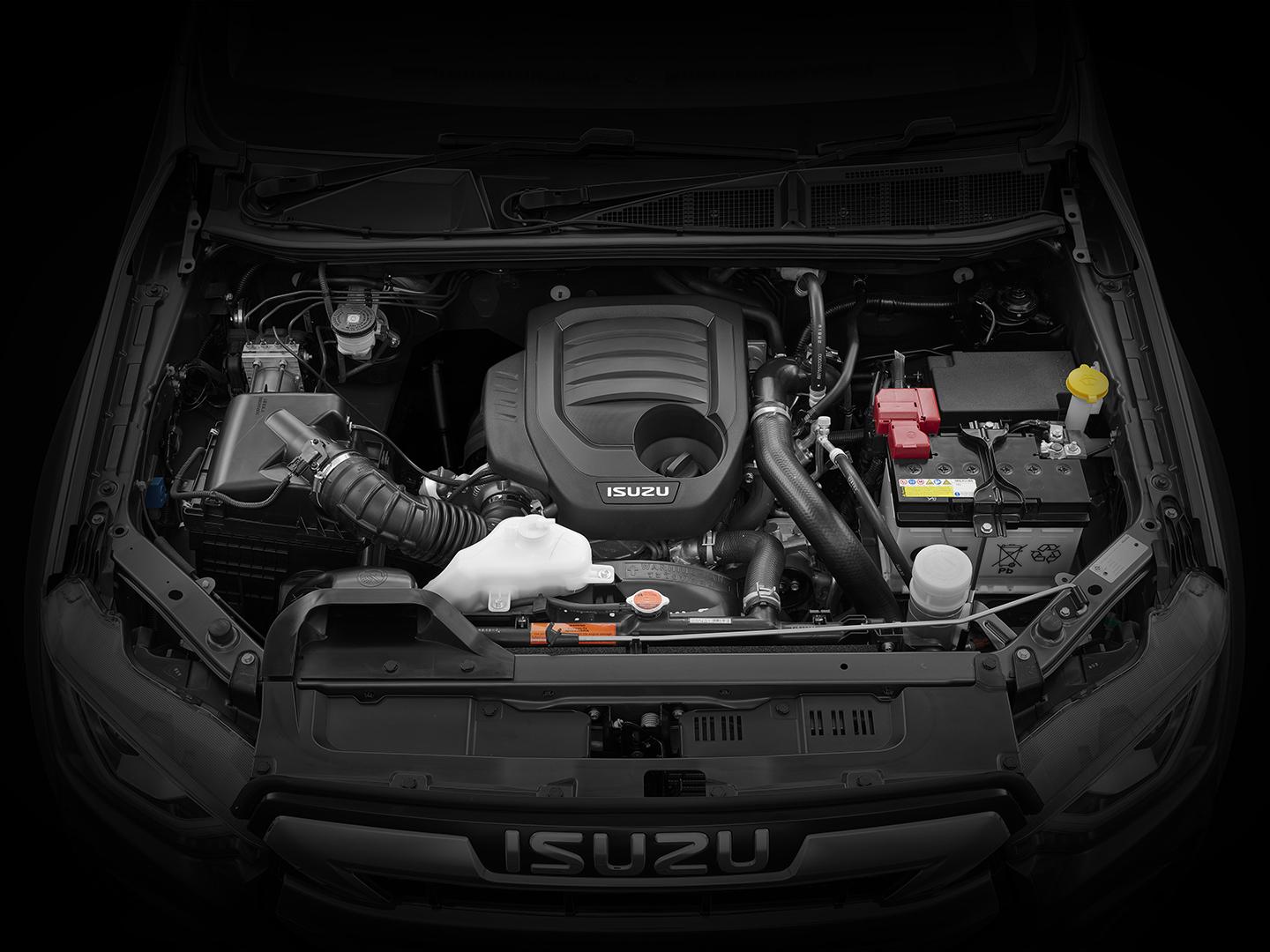

| Model | RZ4E – TC | |
| Type | Diesel 1.9L, In-line 4 cylinders, Intercooler VGS turbo, Common rail | |
| Displacement | cc | 1,898 |
| Max. Power | Ps (kW)/rpm | 150(110)/3,600 |
| Max. Torque | Nm/rpm | 350/1,800~2,600 |
| Drivetrain system | 4×2 | |
| Rough terrain mode | – | |
| Generator | 12V-90A | |
| Emission Standard | EURO 5 |
| Type | 6-speed AT |
| Free wheel hubs | – |
| Suspension | Front | Independent, Double Wishbone with Coil Spring |
| Rear | Dependent, Leaf spring | |

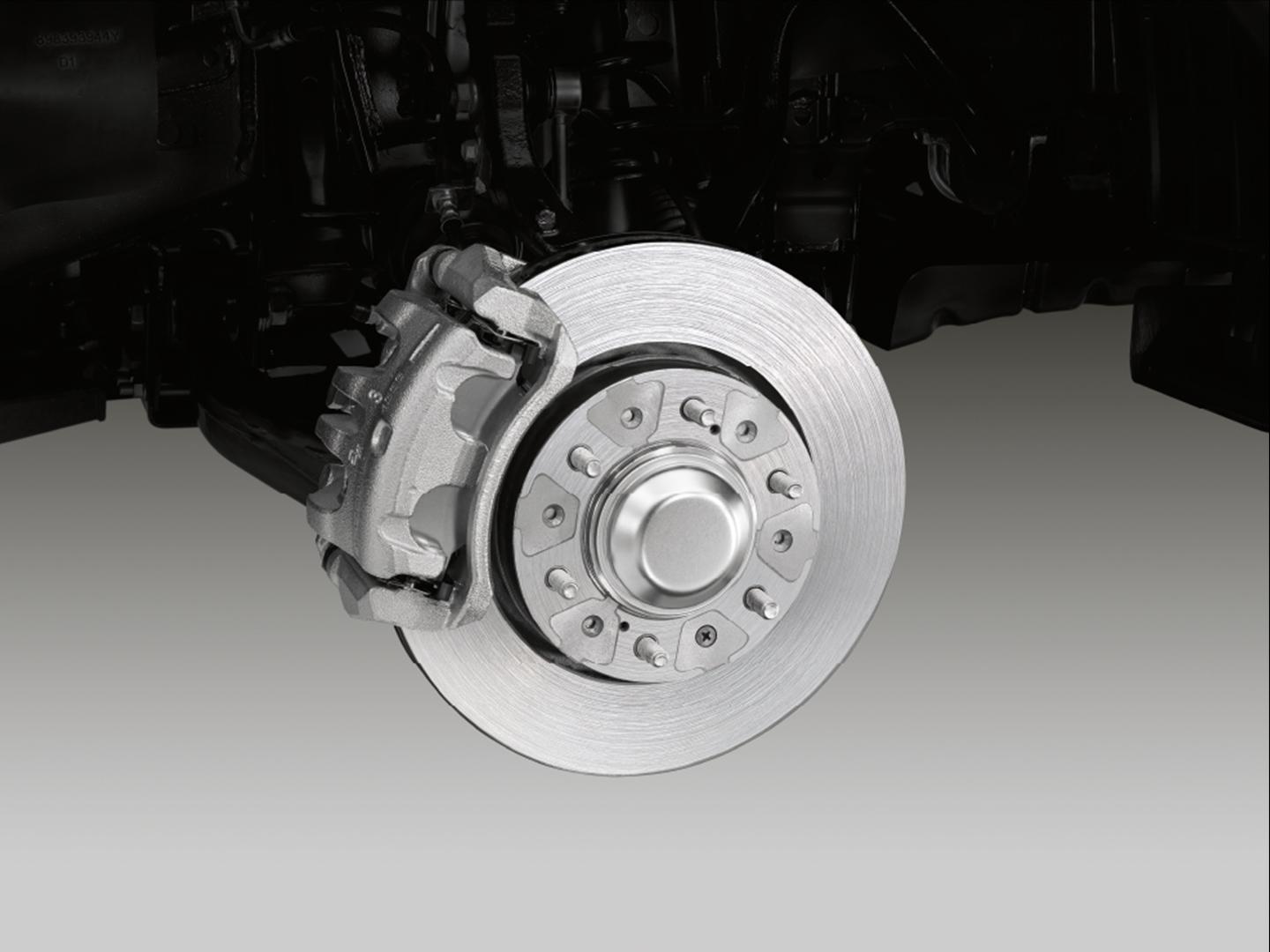

| Brake system | Front | Ventilated Disc |
| Rear | Drum | |
| Assisted steering type | Hydraulic | |

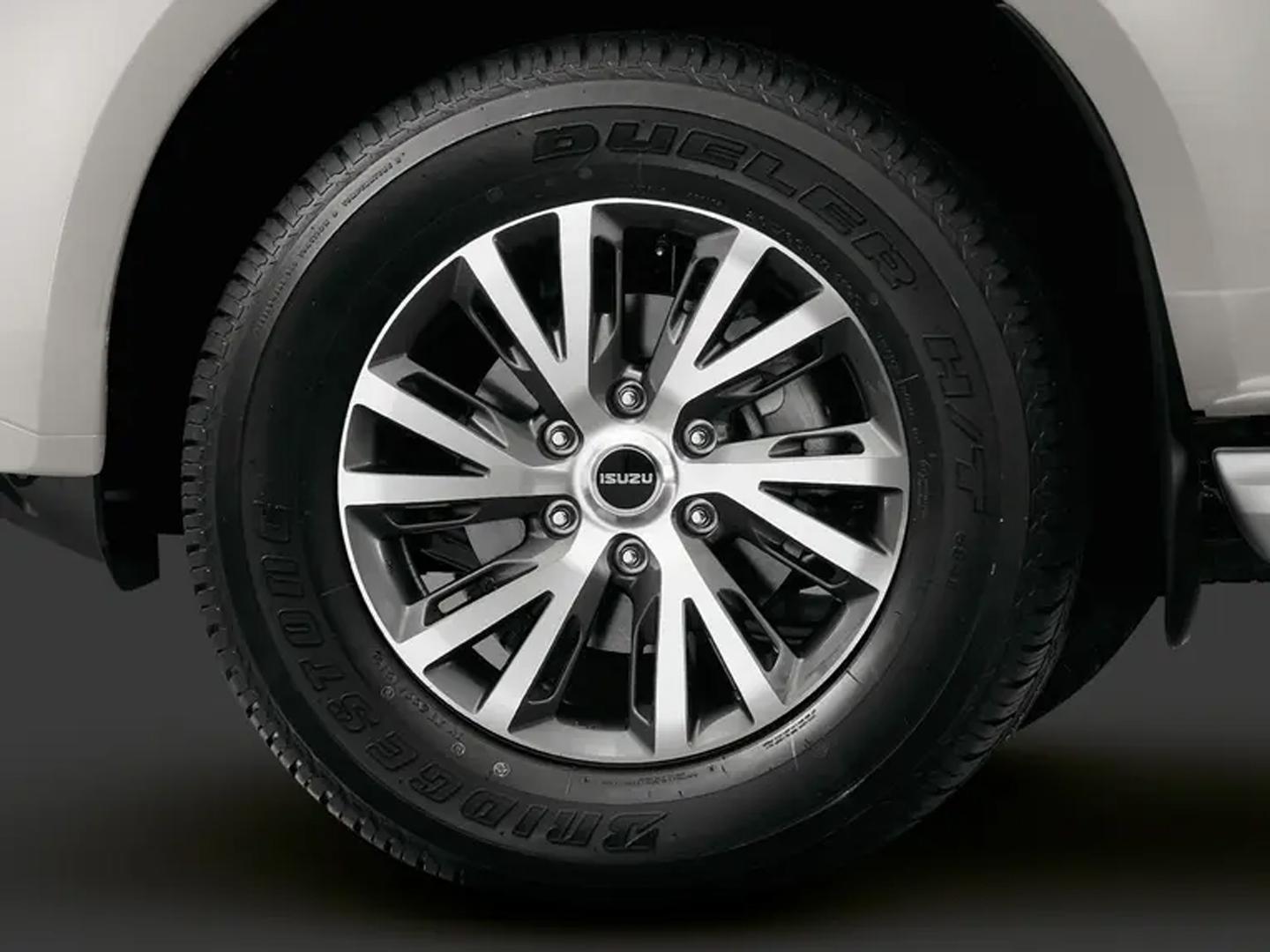

| Tire | 265/60R18 | |

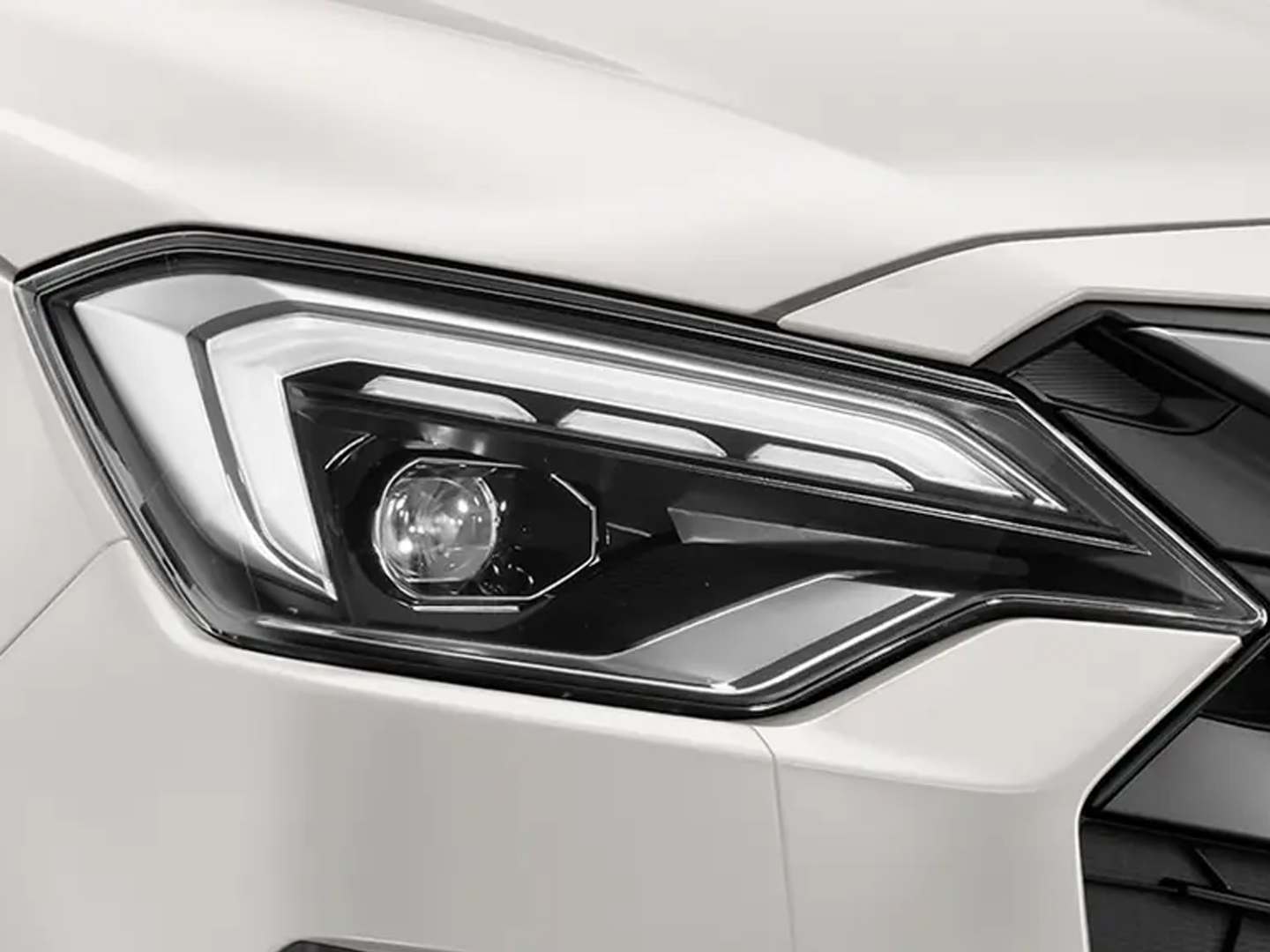

| Headlamp | Bi-LED Projector | |
| LED day running light | With | |
| Automatic leveling | With | |

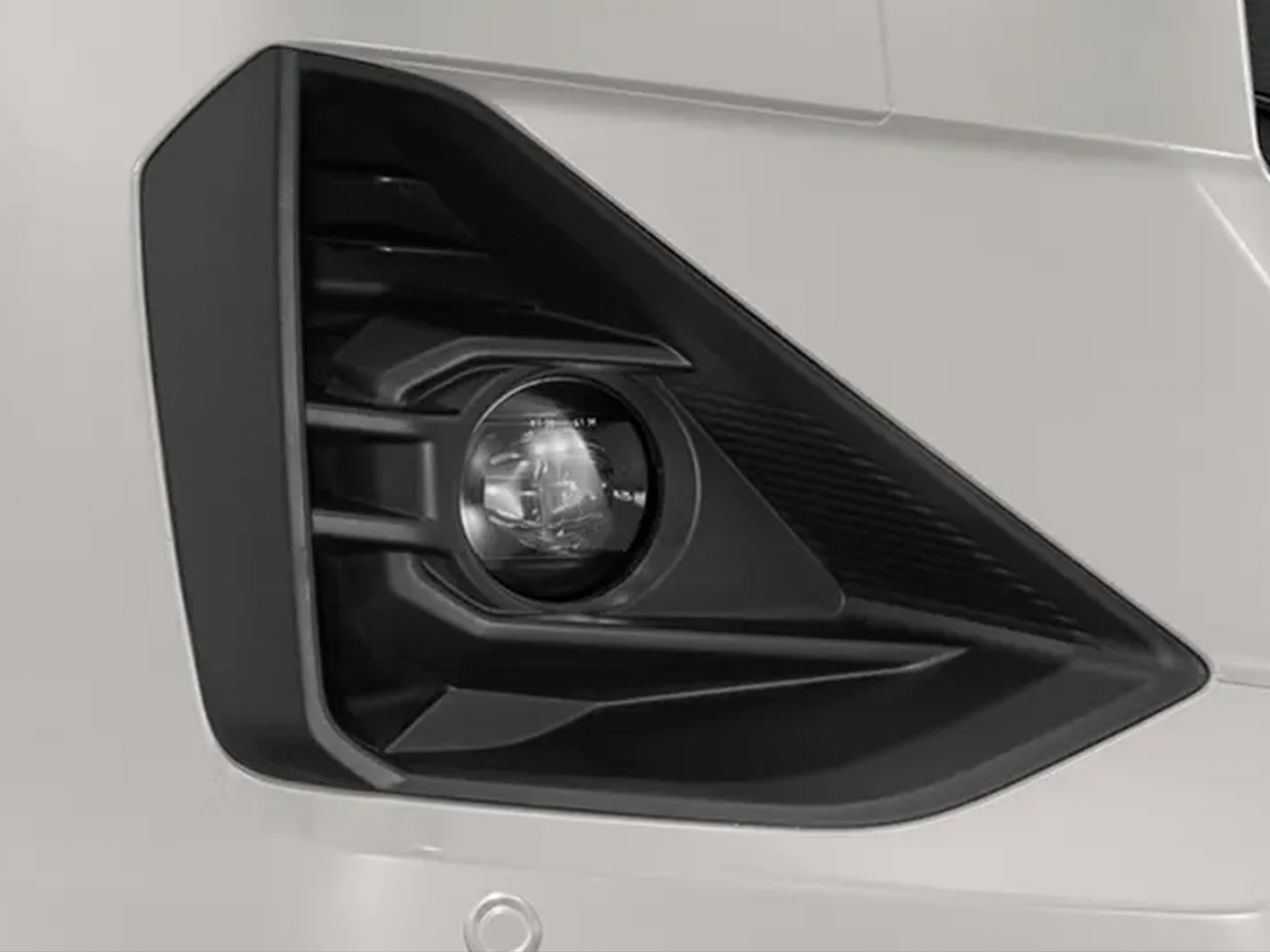

| Fog lamp | LED | |
| Outside door handle grip | Chrome plating | |
| Outside door mirror | Power folding | With |
| Power adjustment | With | |
| Tail gate handle | Chrome plating | |
| Side step | Titanium silver | |
| Rear bumper | Integrated 2 steps, body color | |

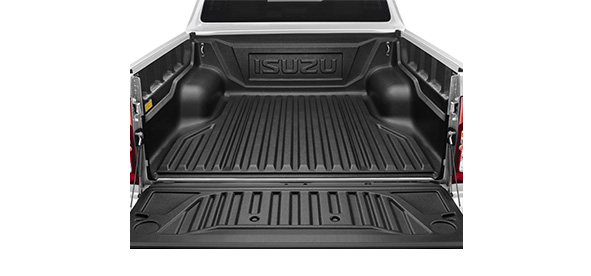

| Bed liner | With | |

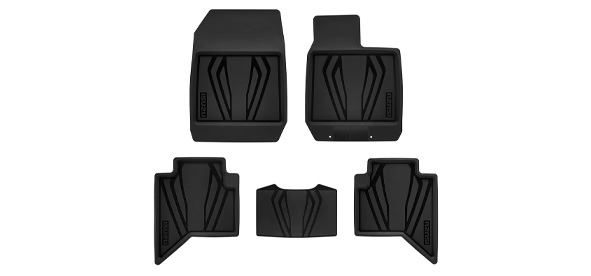

| Rubber Floor tray |  |
|
| Bedliner |  |
|
| Steering wheel | Type | Leather + Switch |
| Adjustment | Tilt and telescopic | |

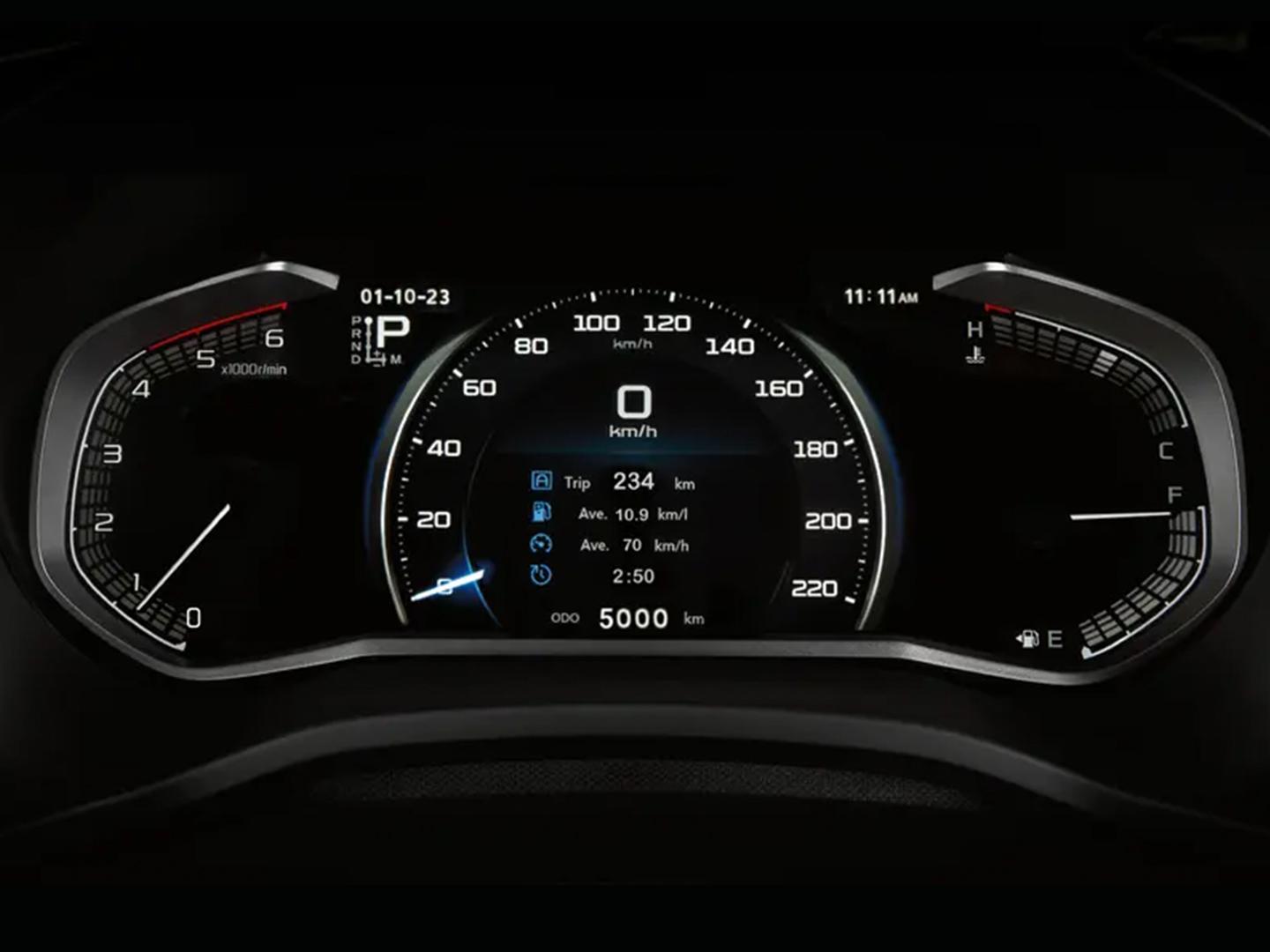

| Multi information display | 7.0 inch display | |

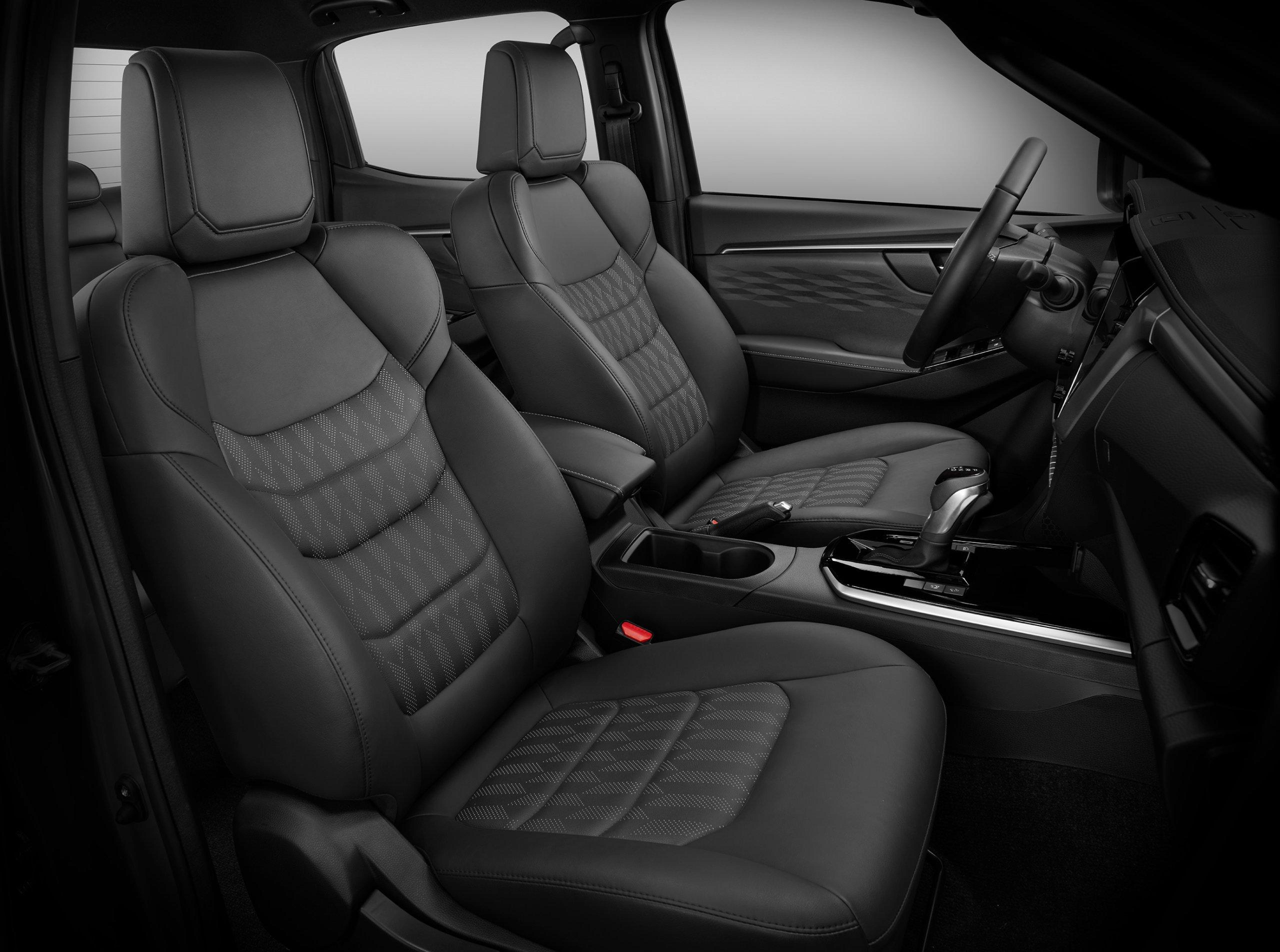

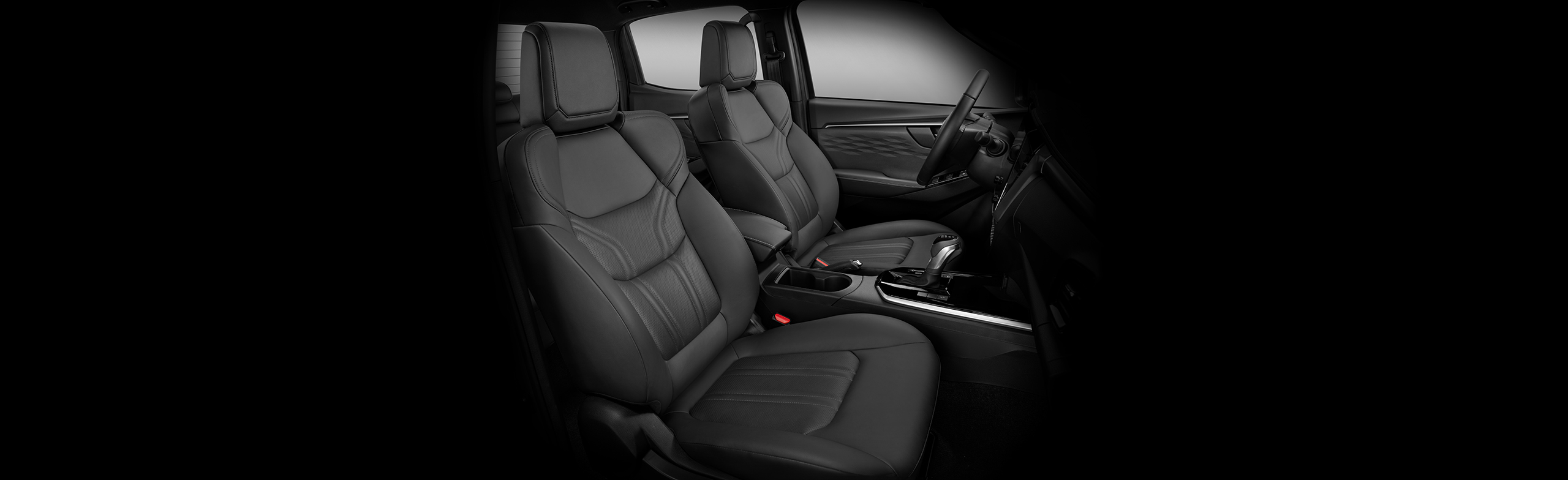

| Seat | 1st row | Power 8-ways driver seat |
| 2nd row | 60:40 ratio, folding, central arm rest | |
| material | Leather (Black) | |

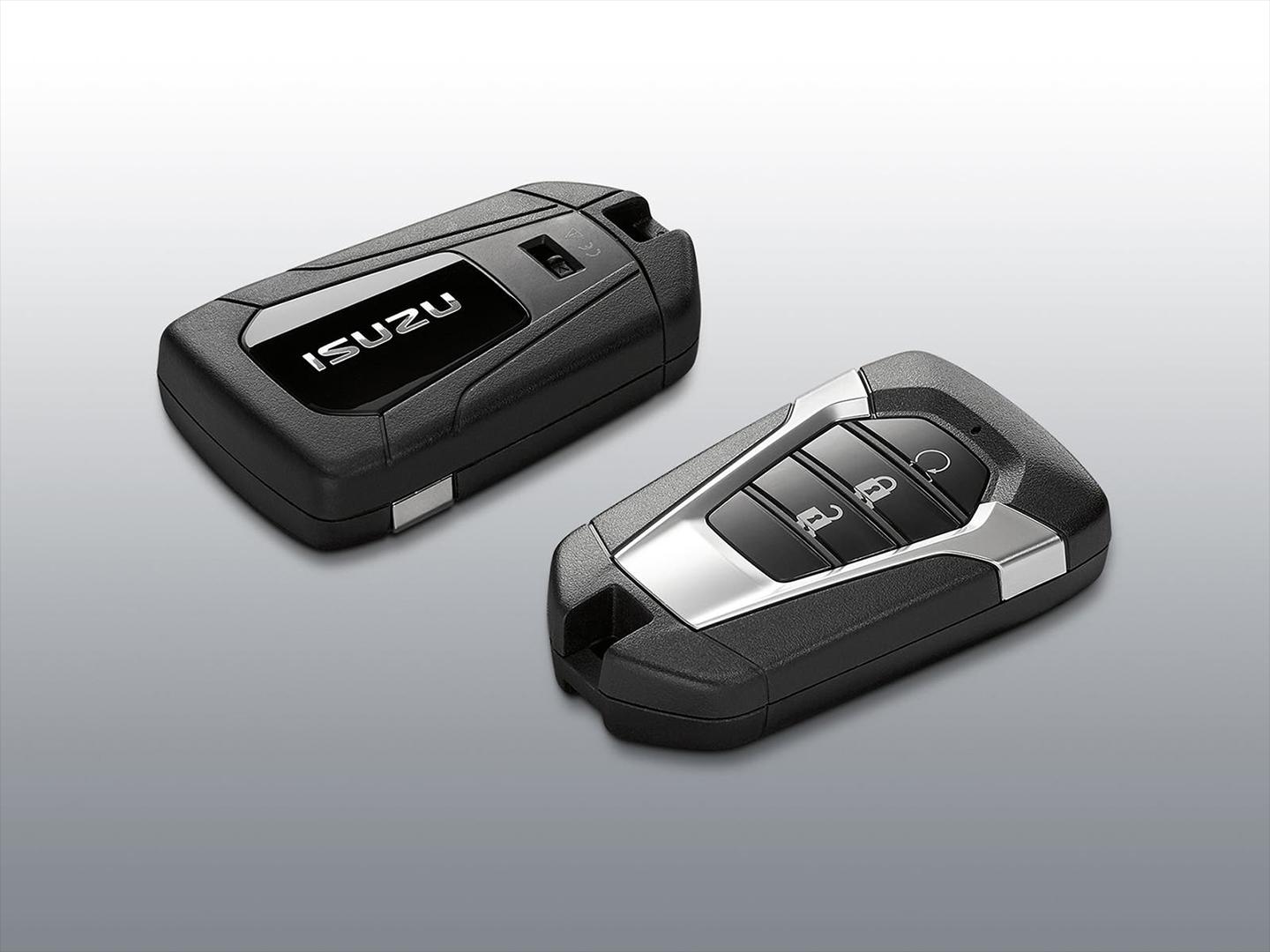

| Smart key & Push start | With |
| Remote engine start | With |
| Smart entry | With |
| Power window | Auto up and down with jam protection for driver side |
| Walk away auto door lock | With |
| Follow me home | With |

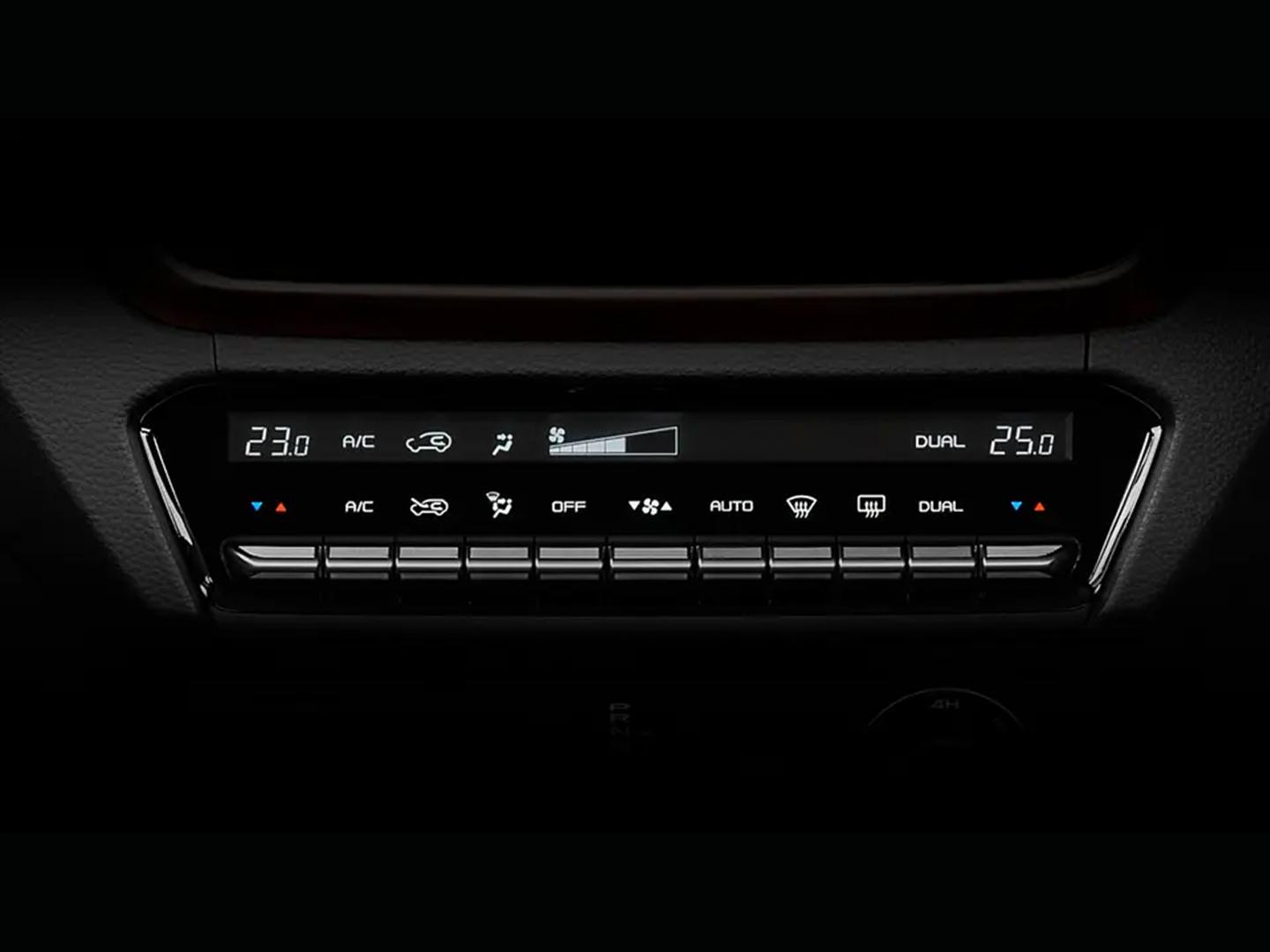

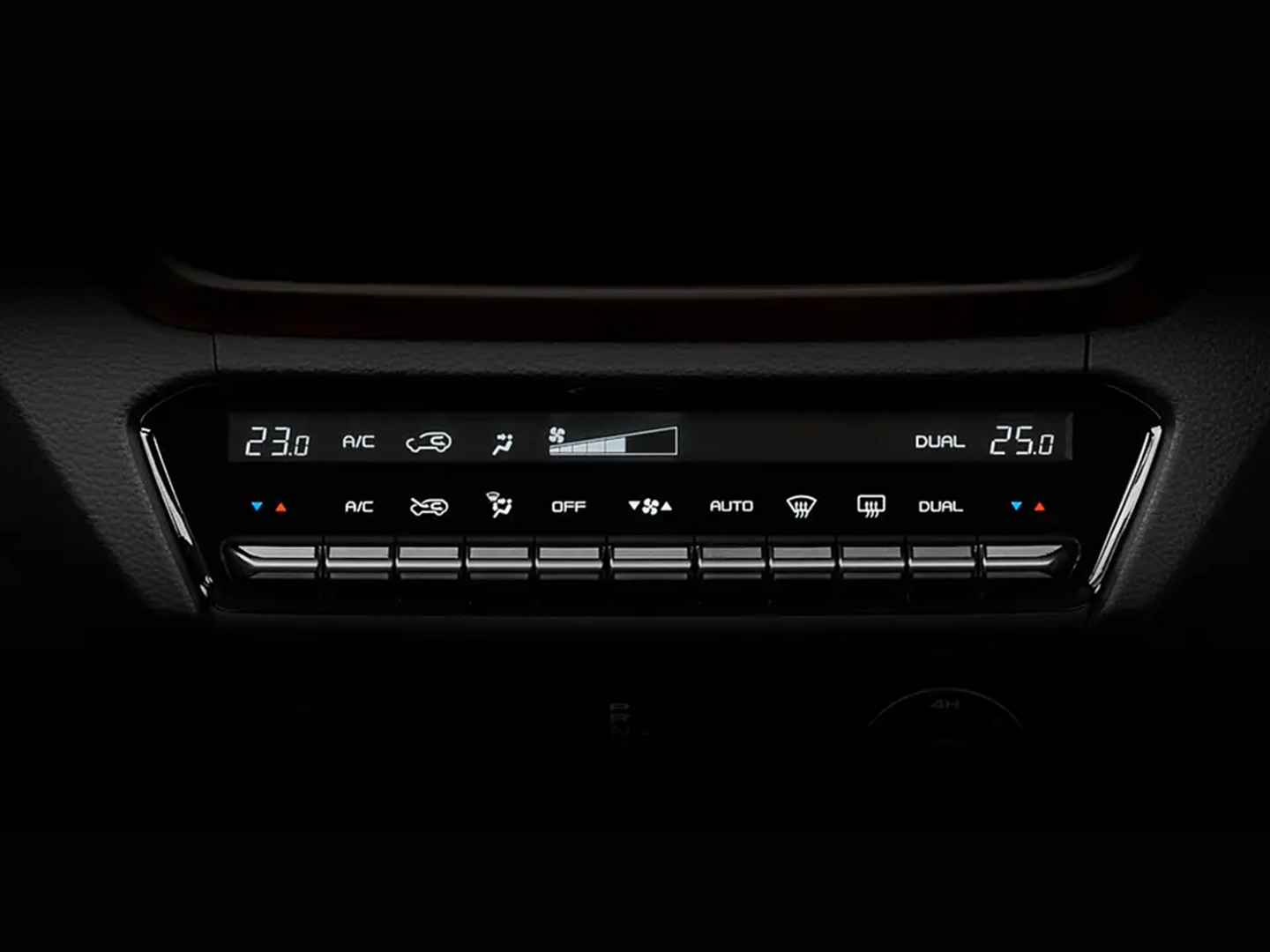

| Air conditioner | Auto Dual Zone |

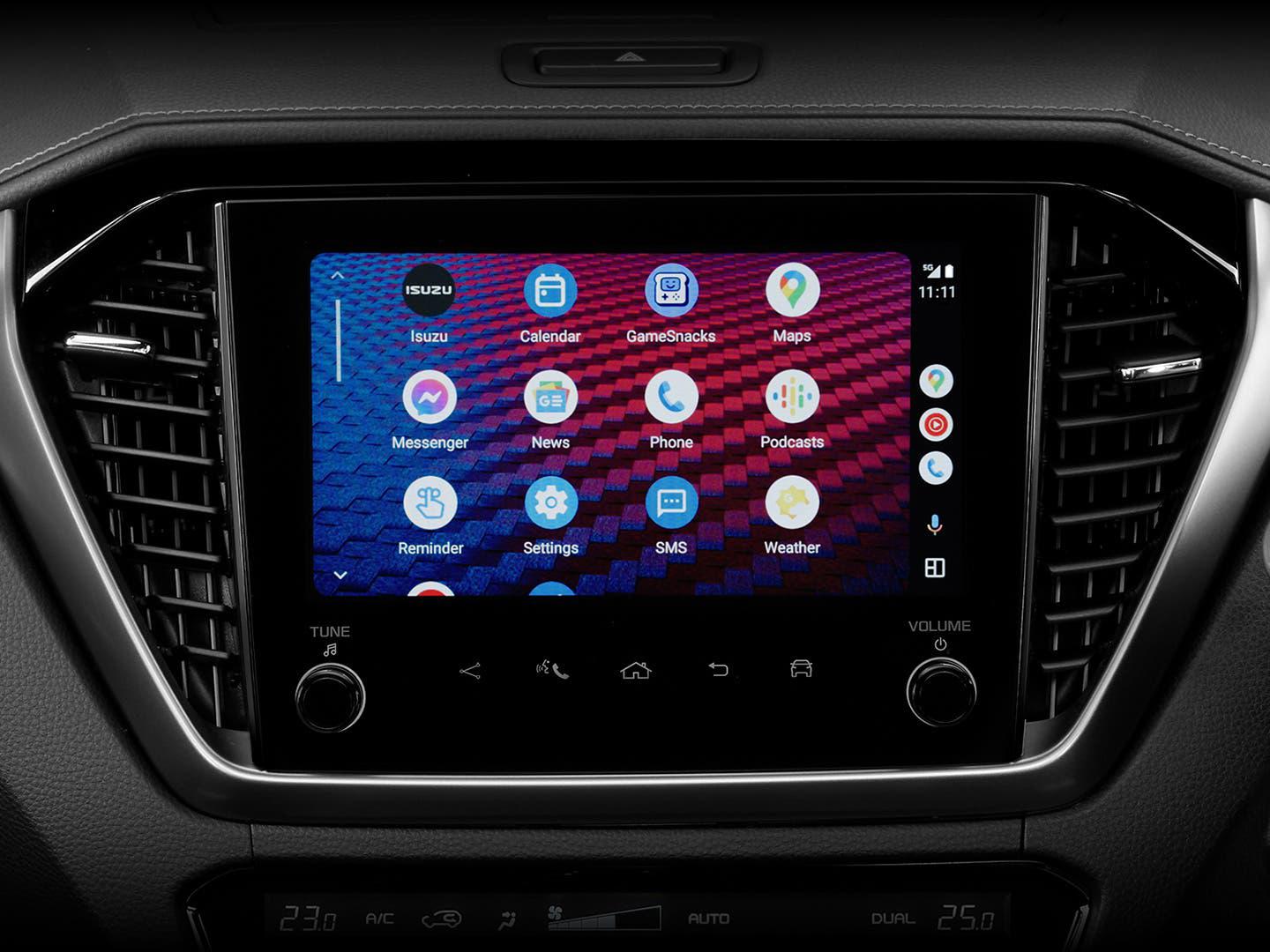

| Entertainment system | 9 inch touch screen, Bluetooth, Apple CarPlay, Android Auto, USB |
| Number of speakers | 06 |

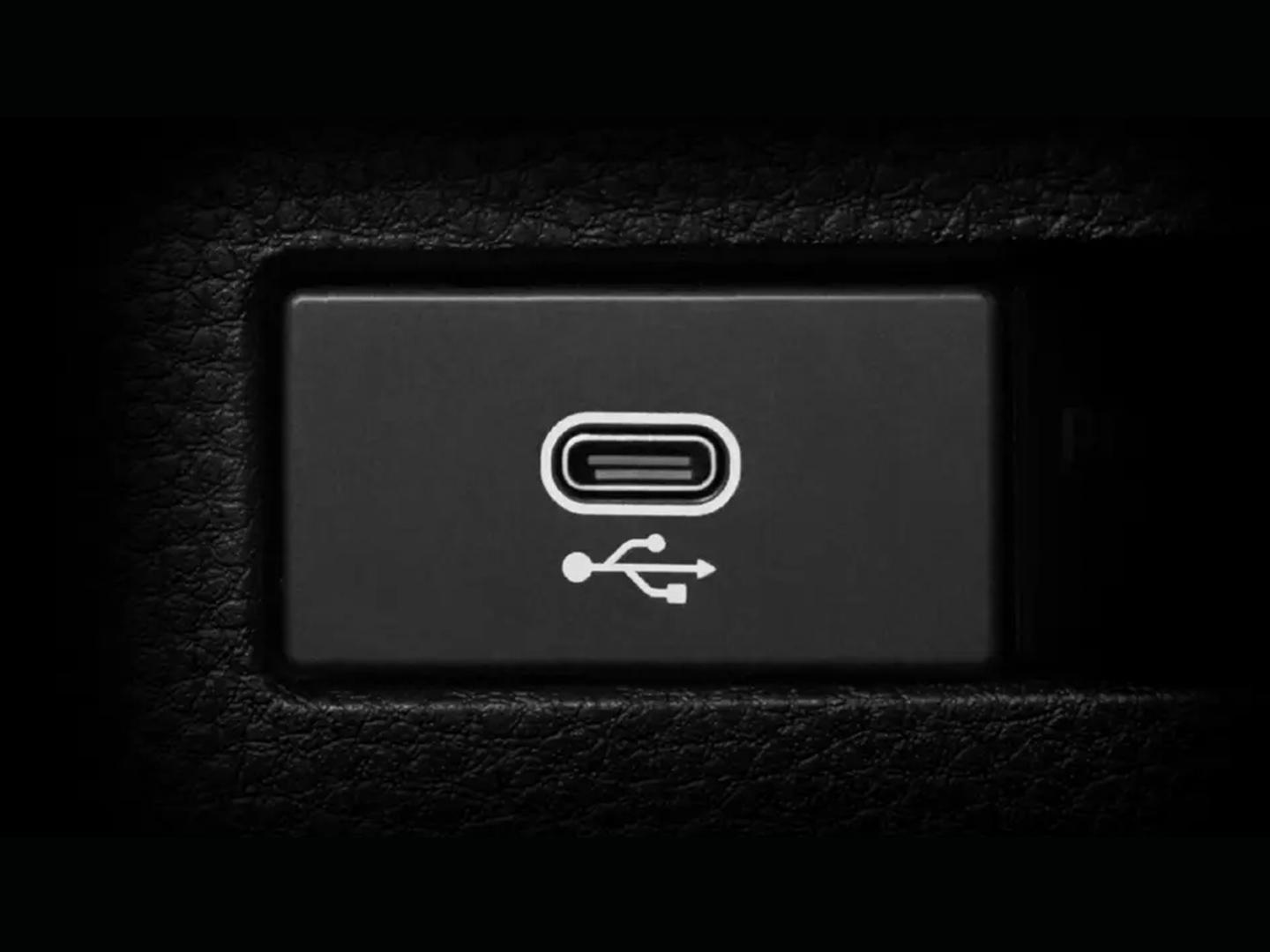

| Fast charging USB | 02 x 5V-2.1A |
| Power outlet (12V,120W) | With |
